Product Name:

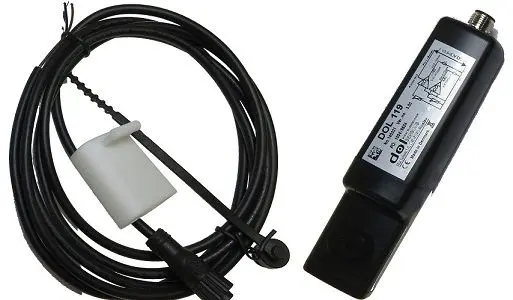

DOL 119 Sensor 5000/10000 PPM 4–20 mA
|
|
Manufacturer item no.:
140332
|
|
Sensor type:
CO₂
|
|
Output signal:
4–20 mA (dual output channels)
|
|
Output 1 – Measuring Range:
0 – 10,000 ppm
|
|
Output 1 – Resolution:
0.0016 mA / ppm CO₂
|
|
Output 2 – Measuring Range:
0 – 5,000 ppm
|
|
Output 2 – Resolution:
0.0032 mA / ppm CO₂
|
|
Accuracy (both outputs):
50 ppm + 5% of reading (400–10,000 ppm)
|
|
Temperature Stability:
±2.5 ppm/°C
|
|
Response Time (T63):
2 minutes at 0.5 m/s air speed
|
|
Power Supply:
13.5 – 30 VDC
|
|
Idle / Max Current Consumption:
8 mA / 55 mA
|
|
Output Load Limit:
20 mA per port
|
|
Operating Temp. Range (CO₂ valid):
0 – +50 °C
|
|
General Operating Temp. Range:
-40 – +60 °C
|
|
Storage Temperature Range:
-40 – +70 °C
|
|
Protection Rating:
IP67 (DIN 40050-9), NEMA 1, 3, 4, 6
|
|
Max Cable Length:
2 m
|
|
Cable Type:
4 × 0.34 mm² (AWG22)
|
|
Mounting Recommendation:
Mid-room, min 50 cm from floor, out of animal reach
|
|
Included Accessories:
M12 connector, blanking plug, protection cap
|
